Integral Fin Tube
- Standard
technology agreement:Criteria China Fabricating Integral-fin tubes for SCGP internals
- 800LCChemical Component
Element | C | Mn | P | S | Si | Cr | Ni | Ti | Cu | Al | Fe | Ti/C |
Min | 20 | 32 | 0.3 | 0.15 | 39.5 | 15 | ||||||
Max | 0.025 | 1.5 | – | 0.015 | 1 | 23 | 35 | 0.6 | 0.5 | 0.45 | ||
Actual value | 0.013 | 0.45 | 0.005 | 0.0016 | 0.046 | 22.3 | 34.1 | 0.41 | 0.0001 | 0.29 | 42.3 | 31.5 |
- Mechanical Property
Mechanical Property | room temperature | 525℃ | grain size | |||
Tensile Strength | Yield Strength | Elongation | Yield σ 0.2 | Yield σ1.0 | ||
MPa | MPa | % | MPa | MPa | ||
Min | 450 | 170 | 30 | 122 | 161 | |
Actual value | 562 | 206 | 47 | 146 | 192 | 5.5 |

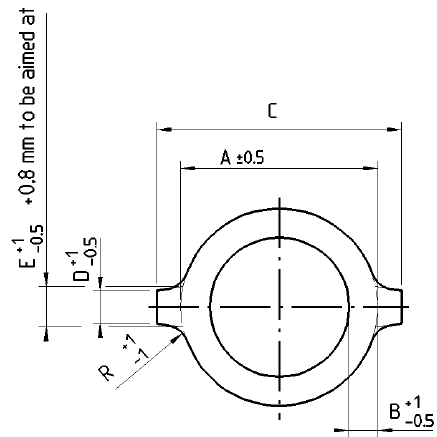

4.Typical Size
Size | Size and Tolerance(mm) | |||||
A | B | C | D | E | R | |
48.3*7.1 | 48.3 | 7.1 | 60(-0.2,+0.4) | 8 | 10 | 6 |
48.3*6.3 | 48.3 | 6.3 | 60(-0.2,+0.4) | 6 | 8 | 6 |
38*5.6 | 38 | 5.6 | 50.8(0,+0.5) | 6 | 8 | 6 |
5.Typical application
Mainly used in shell coal chemical gas furnace heat exchange tube.
